CONCEPT
KNEE HAND INSTRUMENTS

In arthroscopic surgery, meniscus, cartilage, ligaments and bones are to be treated depending on the clinical situation.
Often, tissue fragments need to be separated or removed from the joint.


To facilitate these arthroscopic treatments, Medacta provides a comprehensive choice of arthroscopic hand instruments:
Punches, Graspers, soft tissue Penetrators and Suture Cutters.

PRODUCT RANGE

Individual instruments provided to remove tissue and bony sections during arthroscopic interventions. Designed to be utilized for: cutting soft tissue bridges, removal of degenerative meniscal tissue, cutting of scar tissue, cutting of synovial folds,
separating of lifted cartilage tissue and chopping of loose but soft tissue fragments.

SCOOP PUNCH UPBITER

Hooked Tip: 15° upwards straight, width 4 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning Mechanism

SCISSOR PUNCH

Aggressive Tip:, straight, width 2,5 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning Mechanism

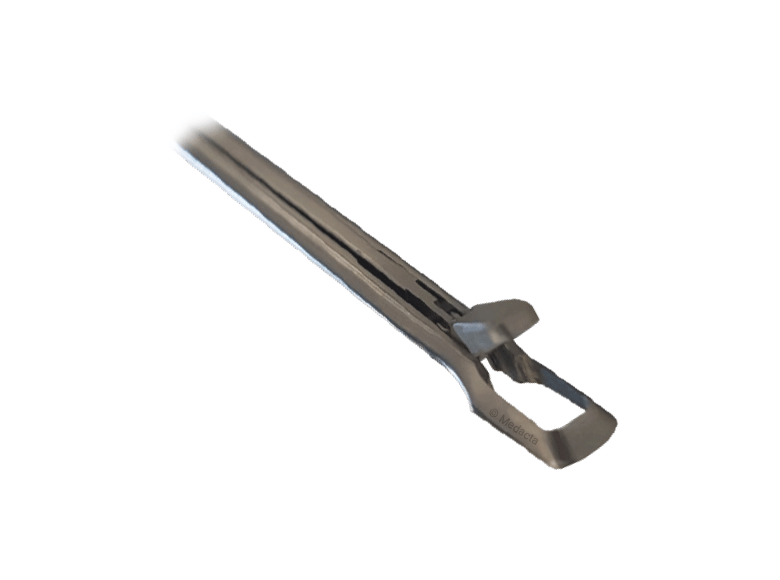

STANDARD PUNCH

Toothed Tip: straight, width 5 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning Mechanism

STANDARD PUNCH UPBITER

Toothed Tip: 15° upwards straight, width 5  mm
Straight Shaft: Ø4 mm , L120 mm
Forceps Handle with Cleaning  Mechanism

STANDARD PUNCH UPBITER LEFT

Toothed Tip: 10° upwards straight, width 5 mm
Left Curved Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning System

STANDARD PUNCH UPBITER RIGHT

Toothed Tip: 10° upwards straight,   width 5 mm
Right Curved Shaft: Ø4 mm, L120 mm
Forceps Handle with Cleaning System

SLIMELINE PUNCH UPBITER

Hooked Tip: 10° upwards straight, width 3 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning  System

NARROW LINE PUNCH UPBITER

Toothed Tip: 10° upwards straight, width 5 mm
Straight Shaft:  Ø4 mm, L 120 mm
Forceps Handle with Cleaning System

OVAL PUNCH

Toothed Tip: straight, width 6 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning  System

OVAL PUNCH UPBITER

Toothed Tip: 10° upwards straight, width 6 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning System

OVAL PUNCH UPSWEPT

Toothed Tip: 20° upswept straight, width 6 mm
Straight Shaft: Ø4 mm, L 120 mm
Forceps Handle with Cleaning System

OVAL PUNCH

Toothed Tip: straight, width 6,3 mm
Straight Shaft: Ø4 mm, L 125 mm
Forceps Handle

Individual instruments used for gripping tissue during arthroscopic interventions. Designed to be utilized for: removing loose meniscal tissue, removing of mainly detached cartilage flaps, removing of mainly detached osteophytes, gripping and carrying of suture during arthroscopic reconstruction techniques.
Available with or without Locking System (L. S.).

ALLIGATOR GRASPER

  • Toothed Tip: straight, width 4 mm
    Straight Shaft: Ø4 mm , L125 mm
    Forceps Handle with Cleaning  System
    and Locking System



  • Toothed Tip: straight, width 4 mm
    Straight Shaft: Ø4 mm, L 125 mm
    Forceps Handle with Cleaning System
    W/O Locking System

LOOSE BODY GRASPER L.S.

Toothed Tip: straight, width 4 mm
Straight Shaft: Ø4 mm, L 125 mm
Forceps Handle with Cleaning System

SUTURE RETRIEVER

Straight Tip: width 3,5 mm
Straight Shaft: Ø4 mm, L155 mm
Forceps Handle

CLEANING FEATURES

All Medacta hand instruments feature an integrated cleaning mechanism achieved through implementation of side
fenestrations (a) that allow access to all hidden surfaces.



Some Punches, Graspers and Suture Cutters allow partial disassembly of the hand-piece during the washing process. The following images show how to assemble/disassemble Medacta Hand Instruments for cleaning and washing.



For detailed information see the Product Catalogue (ref: 99.101.180)
