CONCEPT
CANNULA SYSTEM

The Medacta Cannula System provides a comprehensive choice of cannulas, specifically designed for hip and shoulder arthroscopic procedures. The product portfolio is composed of disposable translucent threaded cannulas to be assembled with the dedicated disposable trocars. Each cannula is supplied with a stopcock valve for convenient management of outflow. Hip instruments range contains also a metal set of reusable trocars and obturators.
The cannulas are delivered with dedicated trocars to enable easy insertion of the cannula via a switching stick.

PRODUCT RANGE

The Hip Cannula System is supplied sterile and disposable in four different configurations:

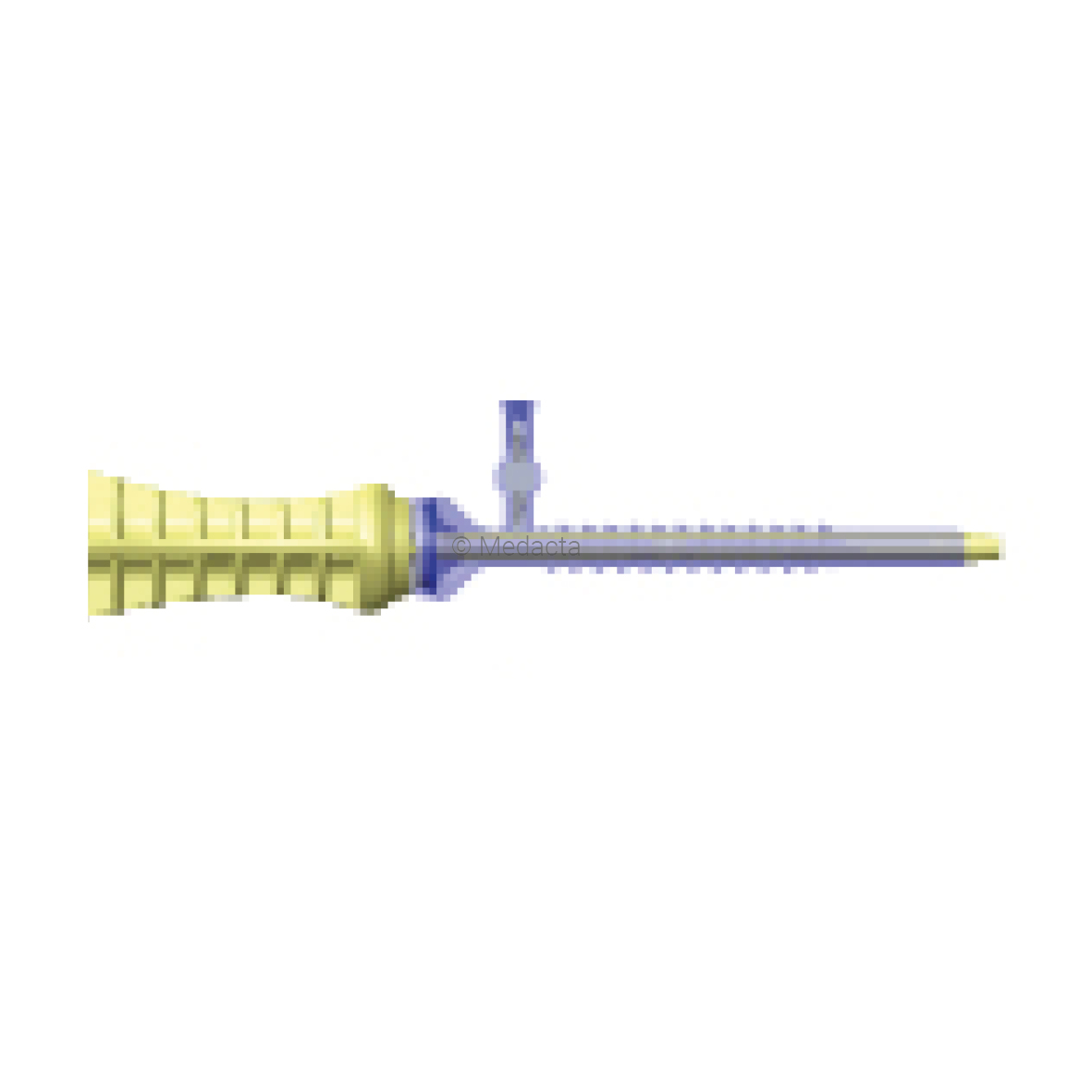

Hip cannula System Ø6.1x90mm

Cannulated Trocar, Ø6.1 WL 90mm.
Color code: Yellow.

Translucent threaded cannula.
Supplied with a stopcock valve.

Hip cannula System Ø6.1x120mm

Cannulated Trocar, Ø6.1 WL 120mm.
Color code: Blue.

Translucent threaded cannula.
Supplied with a stopcock valve.

Hip cannula System Ø8.5x90mm

Cannulated Trocar, Ø8.5 WL 90mm.
Color code: Yellow.

Translucent threaded cannula.
Supplied with a stopcock valve.

Hip cannula System Ø8.5x120mm

Cannulated Trocar, Ø8.5 WL 120mm.
Color code: Blue.

Translucent threaded  cannula.
Supplied with a stopcock valve.

REUSABLE HIP METAL TROCARS

The hip disposable cannulas are optionally provided sterile as individual accessories. The whole range is compatible with the dedicated hip metal trocars.

  • Hip Metal Trocar - Size Ø6.1 WL 90mm
  • Hip Metal Trocar - Size Ø6.1 WL 120mm
  • Hip Metal Trocar - Size Ø8.5 WL 90mm
  • Hip Metal Trocar - Size Ø8.5 WL 120mm

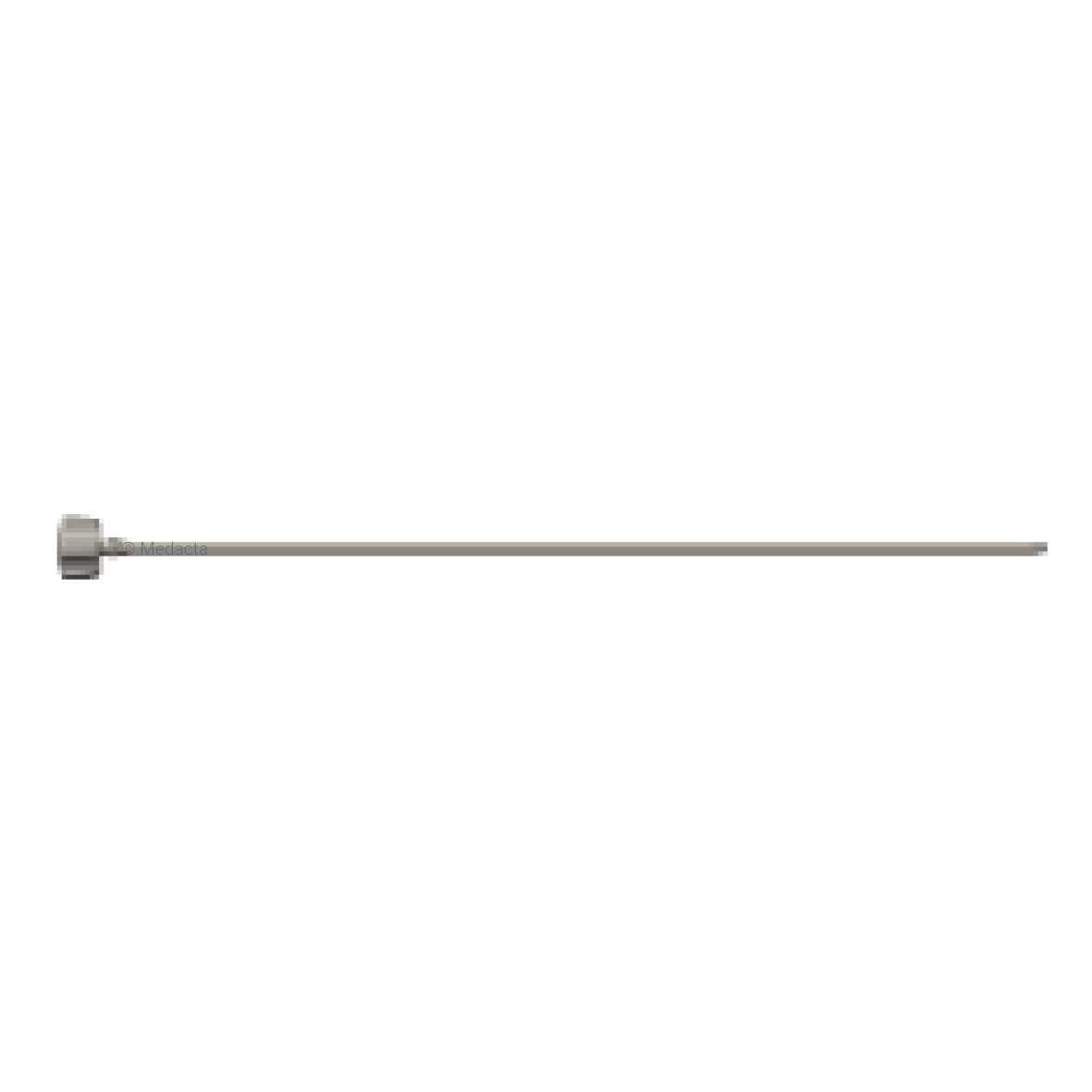

REUSABLE HIP OBTURATOR

Compatible with  dedicated hip metal trocars and equipped with a cannulation of 1.6 Ø mm allowing a guide wire passage.

  • Hip Obturator for Cannula 90mm - Size Ø4mm
  • Hip Obturator for Cannula 120mm - Size Ø4mm
